机房服务器一般配备UPS，当市电停掉时，仍然到维持一段时间。但是，如果长时间停电，UPS也撑不了。此时就需要及时关机以确保数据安全。很多年以前用过winpower软件，通过目标系统安装agent，并用winPower连接UPS，当UPS电量低于设置的阈值时，给各个agent下发关机指令，以实现自动关机。这种方式可以充分利用UPS电量，较为精准的判断电池续航情况，并采取相应动作，但是操作起来有点麻烦。
另一种方式是采用自动化脚本的方式，通过循环ping 某个常接市电设备ip，当失败超过一定次数，触发powerOffVMs，最后shutdown esxi系统。这种方式无需与UPS通讯，只要市电断开，超过一段时间就执行关机指令，超作起来比较方便。但是，这种方式可能存在误判，比如交换机挂了，此时ping设备必然失败，最终会触发关机。因此下面介绍一种更为稳妥的方案。
原理

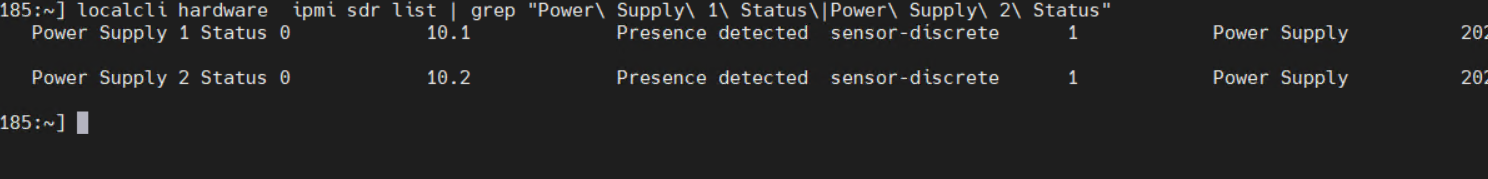

利用esxcli 来esxcli hardware ipmi sdr list | grep "Power\ Supply\ 1\ Status\|Power\ Supply\ 2\ Status"来检测电源是否正常。当其中一路电源断开或异常时，调用powerOffVms.py关闭各虚拟机，最后再调用poweroff 来关闭esxi。
其实还可以利用snmp连接到idrac，也是通过检查电源状态来实现自动监控，但是这种方式又依赖网络了，跟上面提到的方式二差不多。
==注意，这里默认服务器都具备双路电源，如果只有一路电源，那不适用此方法。==
代码
源码如下（有点啰嗦，几年前写的，将就看吧），racadm是为了兼容R710，因为R710的esxcli 指令不支持获取电源状态。执行python脚本后，会修改etc/rc.local.d/local.sh以实现开机自动执行脚本。本例中powerOffDelay是指断电20分钟后就触发自动关机指令。但是当断电期间，又来电时，会重新计时。
本代码在R710至R750上测试通过，不代表你的也可以，仅作参考 ，请根据自己实际情况决定是否使用。
#!/usr/bin/python
from genericpath import exists, isfile
import os
import time
import subprocess
import fileinput
import re
import sys
# version 20190916 usage: add python autoShutdown.py to /etc/rc.local.d/local.sh and uncomment
# by root6819 site: www.juhe99.com
# tools Path
basePath = os.path.split(os.path.realpath(__file__))[0]
# the time(second) when you want to shutdown while check power False
fPowerOff = basePath + '/powerOffVms_py3.0.py'
# Racadm-Dell-EMC-Web-9.3.0-3379.VIB-ESX67i.zip
fRacadm = basePath+'/Racadm-Dell-EMC-Web-9.3.0-3379.VIB-ESX67i.zip'
fLocalOld = '/etc/rc.local.d/local.sh'
fLocalNew = basePath+'/local.sh.bak'
interval = 15 # must >=5s,everty check will cost some time. per 15s trigger a check
powerOffDelay = 1200 # powerOff after supply off in 20Minutes
iFailTimes = 0 # +1 when check Power Off,if ok then reset iFailTimes=0 , if iFailTimes*interval>powerOffDelay then powerOff
machine ="" # use to check if it is R710 machine
def getMachine():
cmd='localcli hardware platform get |grep R710'
machine=os.popen(cmd).read().strip()
showMsg("the machine is R710 ?"+ machine)
def modify_file(file_name, pattern, value=""):
writeLog('now modify file '+file_name+'...')
try:
fh = fileinput.input(file_name, inplace=True)
for line in fh:
replacement = value + line
line = re.sub(pattern, replacement, line)
sys.stdout.write(line)
fh.close()
writeLog('write Ok')
return True
except Exception as e:
writeLog(e)
return False
def myPopen(cmd):
p = subprocess.Popen(
cmd, shell=True, stdout=subprocess.PIPE, stderr=subprocess.PIPE)
ret, err = p.communicate()
return ret.decode('utf-8', 'ignore'), err.decode('utf-8', 'ignore')
def writeLog(msg):
path = basePath+"/Log"
if not os.path.exists(path):
os.makedirs(path)
showMsg(msg)
f = open(path+"/log.txt", mode='a+')
strMsg = '[{0}]: {1} \n'.format(time.strftime('%Y-%m-%d %H:%M:%S'), msg)
f.writelines(strMsg)
f.close()
def showMsg(msg):
strMsg = '[{0}]: {1} \n'.format(time.strftime('%Y-%m-%d %H:%M:%S'), msg)
print(strMsg)
def checkLocalSh():
try:
# check local.sh is config right
with open(fLocalOld, mode='r+') as f:
tmpStr = f.read()
# python /vmfs/volumes/datastore_ssd/tools/autoShutdown.py &
if not 'autoShutdown3.0.py &' in tmpStr:
return False
return True
except Exception as e:
writeLog('checkLocalShErr>>')
writeLog(e)
return False
def shutDownAll():
cmd = fPowerOff
# esxi6.7 powerOffVms use old version script,so we must reWrite the script
writeLog('powerOffVms path>>%s ' % cmd)
result = os.popen(cmd).read()
writeLog('powerOffVms result>>%s ' % result)
writeLog('now poweroff')
os.popen('poweroff')
def checkPS():
#check is R710
if 'R710' in machine:
cmd = 'racadm getsensorinfo |grep ^PS.*AC |grep -c Present'
result = os.popen(cmd).read().strip()
if result == '2':
#showMsg('checkPs OK')
return True
else:
#showMsg(str(iFailTimes)+'times checkPs not OK>>'+result)
return False
else:
#Power Supply AC lost or Presence detected
cmd = 'localcli hardware ipmi sdr list | grep "Power\ Supply\ 1\ Status\|Power\ Supply\ 2\ Status"'
result = os.popen(cmd).read().strip().lower()
if not 'detected' in result:
#must have at lease one supply detected in result
showMsg(str(iFailTimes)+'checkPS() result null,check again...')
return checkPS()
if 'lost' in result:
showMsg(str(iFailTimes)+'times checkPs not OK>>'+result)
return False
else:
return True
def checkRacadm():
# check racadm support
_cmd = 'racadm version |grep -w version'
_result, _err = myPopen(_cmd)
if 'not found' in _err or '不是内部或外部命令' in _err:
writeLog('racadm tool not install,pls install it first!')
return False
writeLog('racadm check oK,the Version is>>'+_result)
return True
if not checkRacadm():
'''check FirstTime if not exists auto install '''
if not os.path.exists(fRacadm):
writeLog(fRacadm + ' file not exists,could not auto instal!')
exit()
writeLog(fRacadm + ' try auto install...')
_result, _err = myPopen('esxcli software vib install -d '+fRacadm)
writeLog('install result>>'+_result)
if _err or _err is not '':
writeLog('install _err>>'+_err)
# check again
if not checkRacadm():
exit()
if not checkLocalSh():
# bak then goto write
_result, _err = myPopen('cp -f '+fLocalOld+' ' + fLocalNew)
writeLog('cp Result>>'+_result)
if _err or _err is not '':
writeLog('cp err>>'+_err)
exit()
_str = 'python '+basePath+'/autoShutdown3.0.py &\n'
if not modify_file(fLocalOld, 'exit 0', _str):
exit()
# check again
if not checkLocalSh():
writeLog('checkLocalSh twice failed,exit now!')
exit()
writeLog('checkLocalSh Ok!')
_fPath = basePath + '/powerOffVms_py3.0.py'
if not os.path.exists(_fPath):
writeLog(_fPath+' file not exists,pls confirm！')
exit()
writeLog(_fPath+' check file OK!')
getMachine()
isFirst = True
while iFailTimes*interval < powerOffDelay:
if checkPS():
iFailTimes = 0
if isFirst:
isFirst = False
writeLog('checkPS OK')
else:
isFirst = True
iFailTimes += 1
if iFailTimes == 2:
writeLog('checkPS failed,maybe a power supply is lost!!!')
# because checkPS will costs about 3 seconds
time.sleep(interval-3)
shutDownAll()
